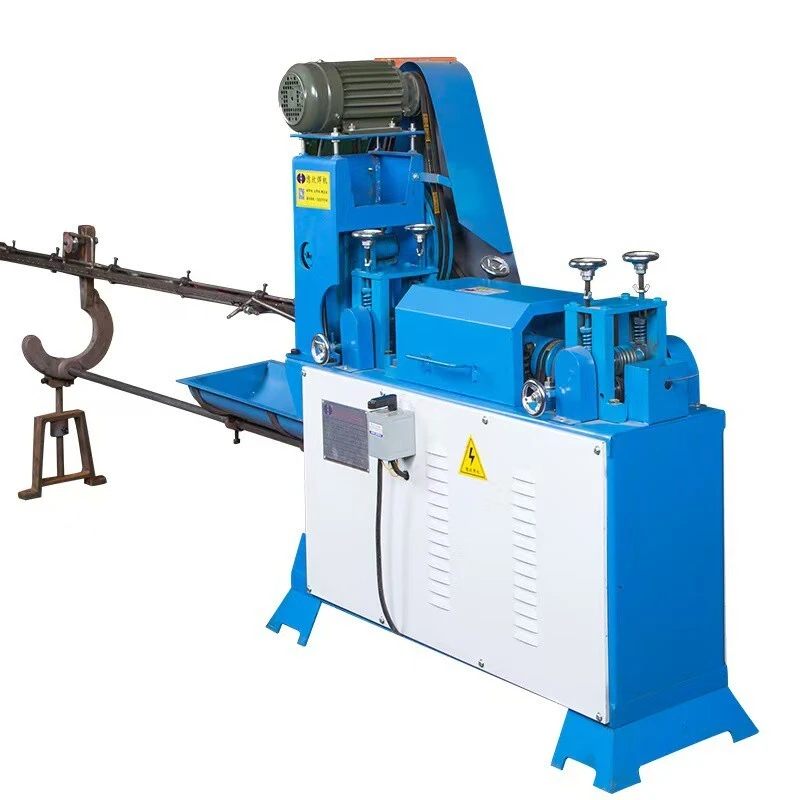

YX-102 Straightening machine
1. Characteristics
The straightening device and cutting device belong to their own motor drive and do not interfere with each other.
Use iron wire, alloy, plastic straightening block.
The cutting length can be adjusted arbitrarily, with small error and good incision.
The wire feed speed is 5 to 30 meters/min, and the diameter of the steel wire does not exceed 4.0 mm.
2. Application field
Suitable for galvanizing wire, goulet drawing wire, stainless steel wire, etc.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Basic parameters
| Model number |
YX-102 |
|
Rated power |
2.25KW |
|
Rated frequency |
50HZ |
|
Volume(mm) |
1000x1400x1600mm |
|
Weight |
250Kg |
|
Rated voltage |
380V |
|
Rectilinear diameter |
2.5+5.0mm |
|
Straightening length |
50-2000mm |
|
Error |
Plus or minus 0.5-1mm |
Field of application
微信图片_20250111165942
微信图片_20250111165944
微信图片_20250111165940
微信图片_20250111165941
